TKR8000 – EB48.4 1/8th Competition Electric Buggy Kit
Limited Quantities Available
- Detailed Description
- Upgrade Parts
- Spare Parts
- Instruction Manual
- Setup Sheets
- Shipping Specs.
The EB48 has been carving out its place as the top 1/8th scale electric buggy for many years now. Through its history, we have continually improved on every aspect of performance and durability. The progression from the EB48 to the EB48.3 evolved through many significant changes, industry firsts, and also hundreds of fine adjustments. With the introduction of the EB48.4, we have once again raised the bar and improved on nearly every aspect of the buggy. This time it took the form of many fine adjustments, but the leap in performance is our most significant yet.
EB48.4 New Features
- New CNC 7075 Chassis with Improved Wear Characteristics
- Revised Steering Geometry and Ackerman Plate
- Bearing Supported Spindle/Carrier Design
- Revised Wide Rear Pivot Suspension Geometry
- Revised Ultra Efficient Drivetrain with New Universal Driveshafts
- Revised Internal Gear Ratio for Improved Efficiency
- CNC 4×1.9 Flat/Flat Delrin Pistons and CNC Delrin Guides
- New CNC 7075 Aluminum Bleeder Shock Caps (emulsion, vented, non-vented)
- New LF (low frequency) Shock Springs
- New Fighter Jet Inspired Body Design
These changes feed into one desire to manufacture the best handling, most consistent, most durable, and highest value kit on the market. We’re confident that our wonderful customers will agree that we have delivered on these goals.
The new Ackermann plate (TKR8100) and steering bell cranks (TKR8104) smooth steering response, providing better stability out of corners without sacrificing on-power steering.
Finishing off the front end are new A and B blocks (TKR8161, TKR8162) that have a more user-friendly 2.5mm hex cap head screw (TKR1533) to access the diffs.
New rear arms (TKR8184) and hubs (TKR8040A) have been designed to accommodate wide rear pivot (TKR8163, TKR8164) hinge pin blocks, producing increased corner speed and improved forward drive out of corners while reducing weight transfer. As we did with the front end, more user-friendly 2.5mm hex cap head screws have been included for easy diff access. By utilizing a new hub design, the arm length remains the same, keeping the same great jump landing and bump handling.

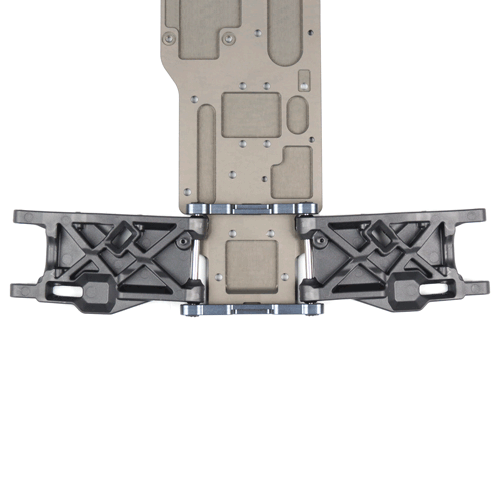

(Click image to View Comparison of Wide vs. Narrow Pivot)
- Proven design
- Designed to be electric from the ground up – no nitro conversions here!
- New 4mm CNC 7075 aluminum hard anodized lightened chassis with improved wear characteristics.
- Super narrow chassis layout – widest point is only 125mm (less than 5”) mudguard-to-mudguard.
- Class leading front and rear clearance (short chassis overhang) provides better bump handling and jump landing.
- Integrated battery tray/mud guard, the battery is sunken into chassis for a super low COG.
- Adjustable, LCG lightweight wing mount.
- Integrated electronics tray/mud guard for easy removal of electronics.
- Spacious, enclosed, easy access radio box with integrated transponder mount.
- Single pack configuration is better balanced, lighter weight, and makes battery changes easier.
- Battery tray accommodates 2x2s packs.
- Adjustable chassis brace system for fine tuning flex with front, center, and rear braces.
- 2-piece CNC aluminum motor mount with precision dual clamping gear mesh adjustment.
- Split center diff mount for easy maintenance.
- Lightweight direct-to-diff mount design.
- Uses standard MOD 1 pinion gears (TKR4171-TKR4190).
Differentials and Drivetrain
- Three fluid-filled adjustable super lightweight diffs.
- Less rotating mass = better acceleration.
- Lightened outdrives, and diff couplers used throughout.
- Aluminum tapered aluminum center driveshaft.
- New 12/40 ring and pinion gears for improved efficiency.
- Angled rear gearbox with large bearings.
- Straight center driveline for maximum efficiency and minimal wear.
- New universal driveshafts with narrow stub axle and revised bearing placement.
- Optional under/overdrive available.
- Super smooth 16mm big bore shocks.
- 6mm front, 5mm rear CNC 7075 aluminum gun metal anodized shock towers are standard.
- New flat/flat piston design and configuration (4 x 1.9mm).
- Fully adjustable long travel suspension geometry maximizes stability and traction while providing superior cornering and on-power steering.
- CNC threaded shock bodies, caps, cartridge caps, and adjustment nuts.
- New CNC 7075 emulsion/vented/standard shock caps.
- 4mm hardened and polished steel shafts.
- New tall clamping spring perches with captured shock boots.
- New CNC delrin internal triple guide design for true and consistent shaft action.
- Optional springs and sway bars are available.
Suspension and Steering
- Adjustable front arm sweep and angle to make the car more aggressive (swept forward), or easier to drive (swept back).
- New captured outer front and rear hinge pins.
- ‘Narrow pivot’ steering posts provide ‘0 bump’ geometry with almost ‘0 steering slop’.
- Adjustable CNC 7075 hinge pin braces.
- New bearing supported spindle/carrier with updated geometry and enhanced durability.
- Long rear sway bar for improved consistency.
- New ‘Wide Pivot’ C and D hinge pin braces.
- 4mm inner, 3.5mm outer hinge pins, polished for smooth action.
- New narrow high roll center rear hubs.
- Adjustable Ackermann and bump-steer (bump in, zero bump, bump out).
- New aluminum Ackermann plate rides on four precision bearings.
- New steering bell cranks with optional solid right bell crank (no servo saver) for increased steering response.
- Adjustable steering stops for precise steering travel settings.
- New high downforce wing with hole guides included.
- Easily adjust anti-squat, rear toe, front arm angle, front arm sweep, roll center, toe, camber, wheelbase, Ackerman, bump steer, suspension geometry out of the box.
- Full set of option parts available.
- Extremely easy to work on with minimal screw count.
- All metric hex hardware.
- Length: 435mm (without wing)
- Wheelbase: 323-335mm
- Width: 306-310*mm (*optional hubs required)
- Weight: 3200g (7.0lb) (RTR weight equipped w/ Tekin RX8, 500g battery, rx, etc)
- Diff Ratio: F/R – 12/40t, Center – 44t
- Battery tray dimensions: 50x148mm (2x2s or 1x4s config)
- Kit/RTR: Kit
Needed to complete
- 2/3 channel radio/transmitter
- 1/8 scale ESC and motor system
- High torque steering servo (at least 300oz/in)
- MOD1 15 to 25 tooth pinion (TKR4175 – TKR4185)
- 4-6s LiPo battery (4s at least 5000mAh)
- 1/8th scale buggy tires, wheels & CA glue
- Paint for body
- Nut drivers 5.0mm (TKR1107, 5.5mm (TKR1108), 7.0mm (TKR1109)
- Hobby knife
- Needle-nose pliers
- Shock tool (TKR1115) OR adjustable (Crescent) wrench (for shock assembly)
- 17mm wheel wrench (TKR1116)
- 4mm turnbuckle wrench (TKR1103) – 5.5/7.0 two sided wrench (TKR1119)
- 4mm arm reamer (or #19 drill bit)
Blank Setup Sheet:
EB48.4 Blank setup sheet – (editable, savable)
Filled Setup Sheets:
- -2016_12_29 - EB48.4 Recommended Indoor.jpg
- 2016_12_26 - EB48.4 - Joe Bornhorst - Rough Track.jpg
- 2016_12_26 - EB48.4 - Joe Bornhorst - Smooth Track.jpg
- 2017_01_06 - EB48.4 - Alex Zanchettin - IBR Padova Smooth Track.jpg
- 2017_08_17 - EB48.4 - Martti Myllyntaus - Lavanko Rough Track.jpg
- 2018_05_06 - EB48.4 - Joe Bornhorst - Silver State 2018.jpg
- 2019_02_04 - EB48.4 - Wiggins - Base Setup.jpg
EB48.4 New Parts Listing (Compared to original EB48.3)
|Dimensions||17 x 9.5 x 5.6 in|
